Samlex 15A Battery Charger - 24V - 3-Bank - 3-Stage w/Dip Switch Lugs [SEC-2415UL]
Samlex 15A Battery Charger - 24V - 3-Bank - 3-Stage w/Dip Switch Lugs [SEC-2415UL]
Couldn't load pickup availability

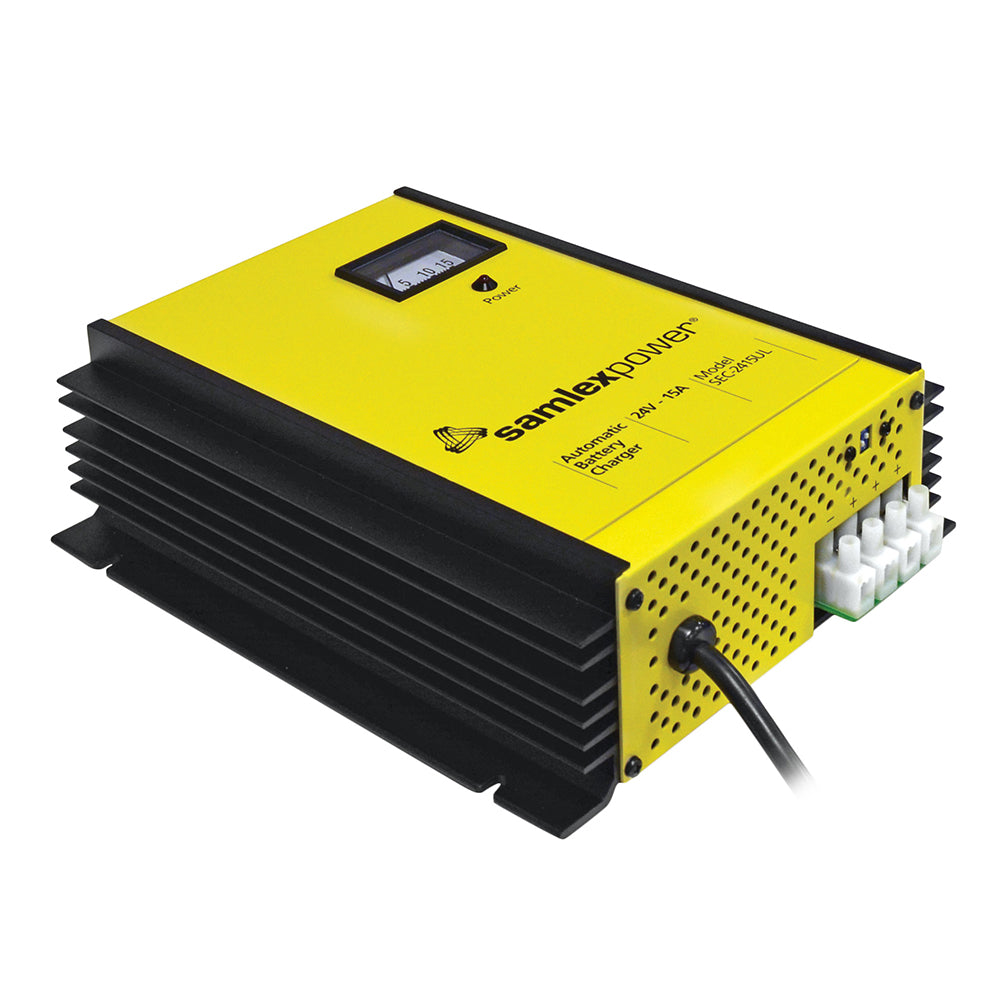

15A Battery Charger - 24V - 3-Bank - 3-Stage w/Dip Switch & Lugs
This advanced fully automatic three-stage 15 Amp battery charger is ideal for charging all types of 24 Volt lead-acid batteries ( Flooded / Absorbed Glass Mat (AGM) / Gel Cell) from a 120 V, 60 Hz or 230 V, 50 Hz AC source. By means of a DIP switch setting, conversion to a two-stage algorithm is possible to charge batteries connected to a DC load (DC UPS). The unit can also be used as a DC Power Supply. Features include overload, short-circuit and over-temperature protection. The unit allows charging of up-to 3 separate battery banks.
Features:
- High efficiency
- Commercial Grade
- Lightweight
- Quiet operation
- Industry Proven Design – 1000s of units in operation
- 2 or 3 stage charging (user selectable)
- 120 or 230 VAC, 50/60 Hz (user selectable)
- Voltage meter display – Ammeter and LED power status
- For all types of Lead Acid batteries
- Charge with a battery load or stand alone
- Use as a power supply or DC UPS
- UPC: Universal Protection Circuit – short circuit, overload, reverse battery polarity
- Charge 3 banks of batteries at once – no isolator necessary
Specifications:
- Input: 120 VAC or 230 VAC
- Output: 24 VDC
- Amps: 15 Amps
- Remote Control: 900-RC
- Weight: 6 (lbs)
- Weight: 2.72 (kg)
- Dimensions: 10.5 x 8.5 x 3 (in)
- Dimensions: 26.7 x 21.6 x 7.6 (cm)
- Safety: Listed to UL Standard UL-1564, EMI Compliant to FCC Part 15(B), Class B
- Warranty: 2 Year Limited
Applications:
- Automotive
- Recreational vehicles
- Marine
- Communications sites
- Battery back-up systems
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- Charger Output Voltage: 24v
- Charger Output - Amps: 15a
- Charging Banks: 3
- Portable: No
- Charger Input - Voltage: 120/240v
- Box Dimensions: 5"H x 10"W x 14"L WT: 7.1 lbs
- UPC: 622988083051
Owner's Manual (pdf)
Brochure (pdf)
